RB 525 AS Copylizer Lighting Unit

Code no: 5284

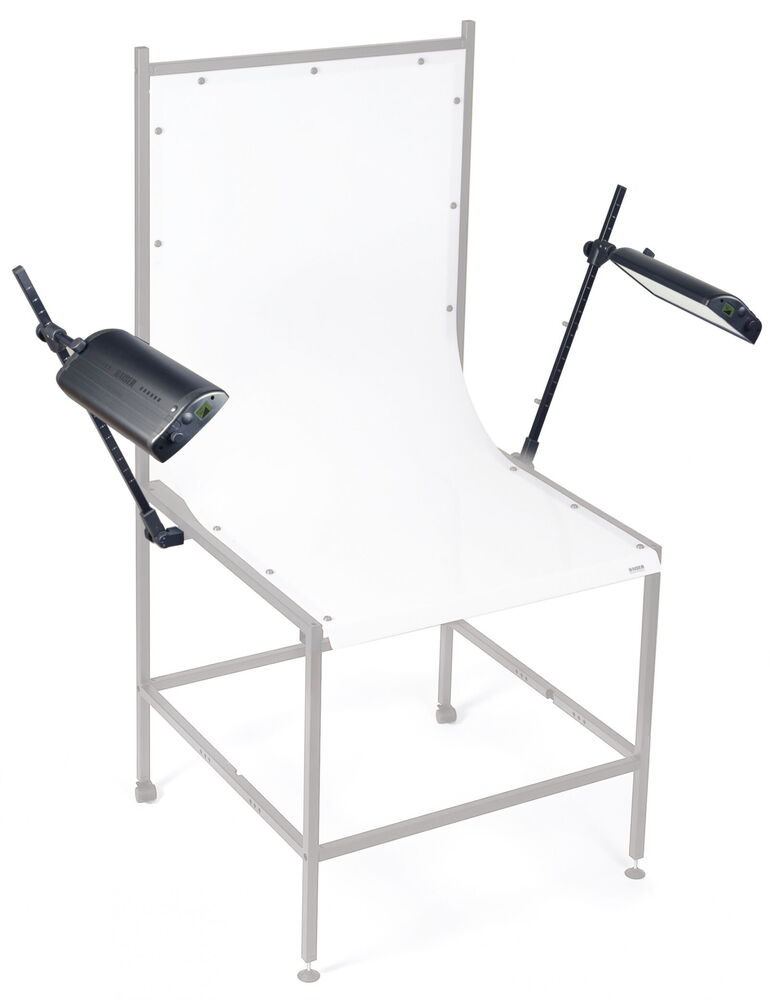

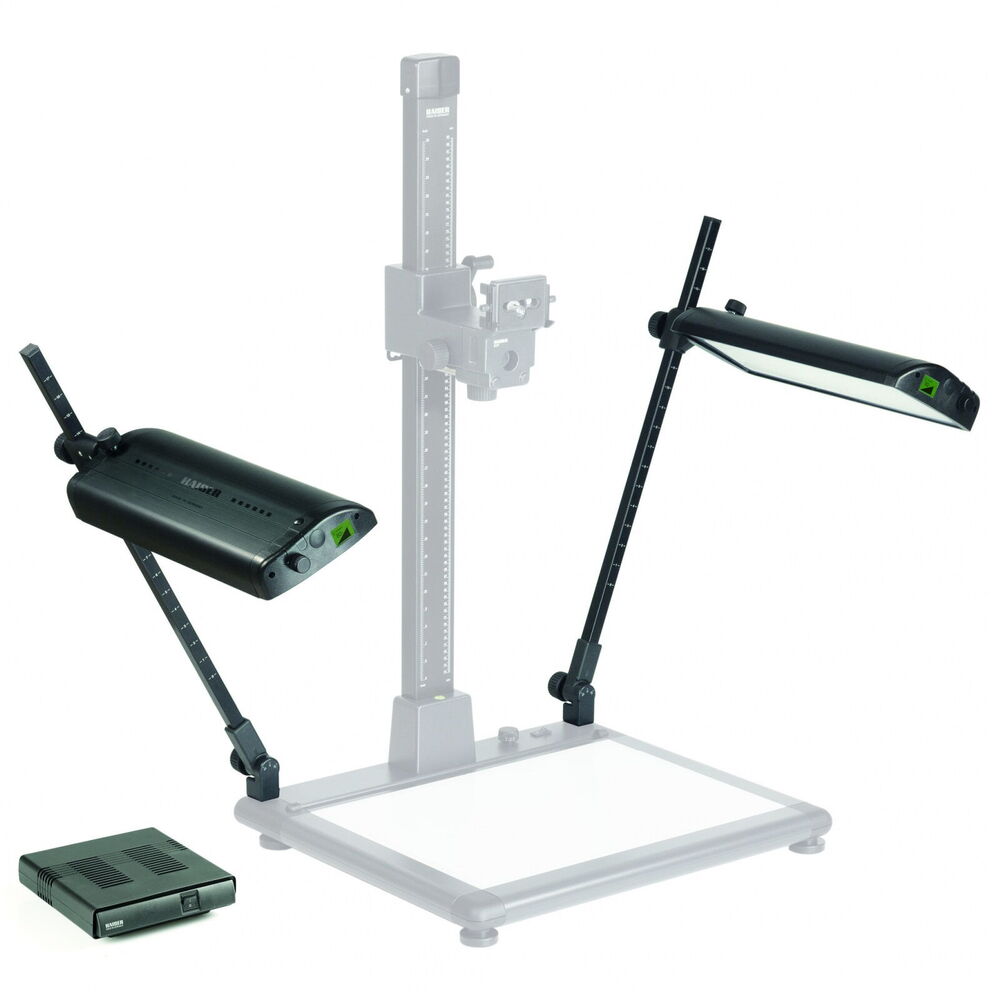

LED surface lighting unit with thermo-management, consisting of two light banks for even and soft illumination. Suitable for Copylizer exe.cutive LED (5215) and Illumina Base exe.cutive LED (5244). Can also be used as surface lighting unit for TopTable PRO shooting table (5921).

The efficiency of LEDs is much higher than that of conventional light sources. However, because LEDs also convert energy into heat, a thermal management system is necessary for optimal reproducibility, as otherwise both brightness and color temperature would change as the temperature rises.

The integrated thermo-management ensures that the adjusted brightness as well as the color temperature always remain constant, regardless of the room and unit temperature, thus achieving reproducible results. In addition, the LEDs have a longer service life.

This thermo-management includes both sensor-controlled temperature monitoring with dynamic compensation control and elaborate passive cooling via LED board and aluminum housing.

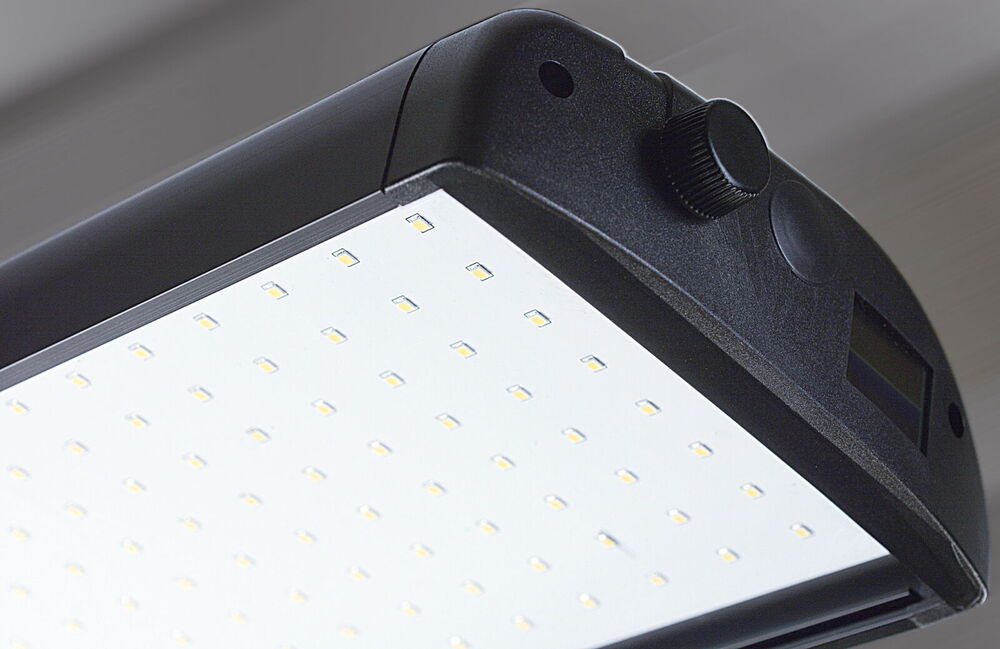

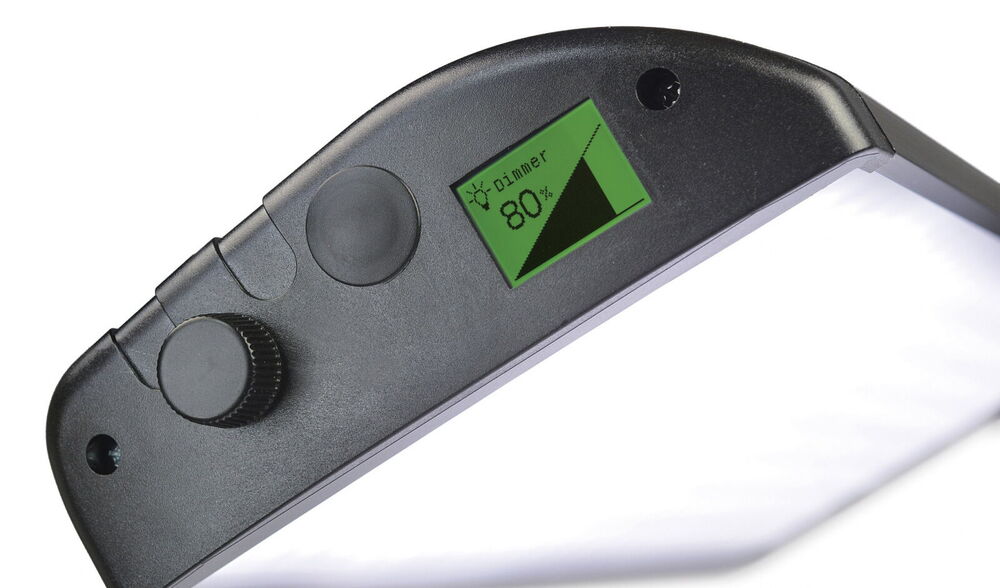

Each light equipped with 192 selected white SMD LEDs, 5600 Kelvin, CRI = 96. Emitted light has absolutely no IR and UV content, is flicker free without residual ripple. Lights can be dimmed separately or synchronously in 1 %-steps from 10 % up to 100 %. Illuminated info screen.

The light intensity of the two LED panels is matched to each other. This results in precisely homogeneous illumination with symmetrical alignment of the two light banks.

Memory function: The copy lighting starts with the brightness that was set before the last switch-off.

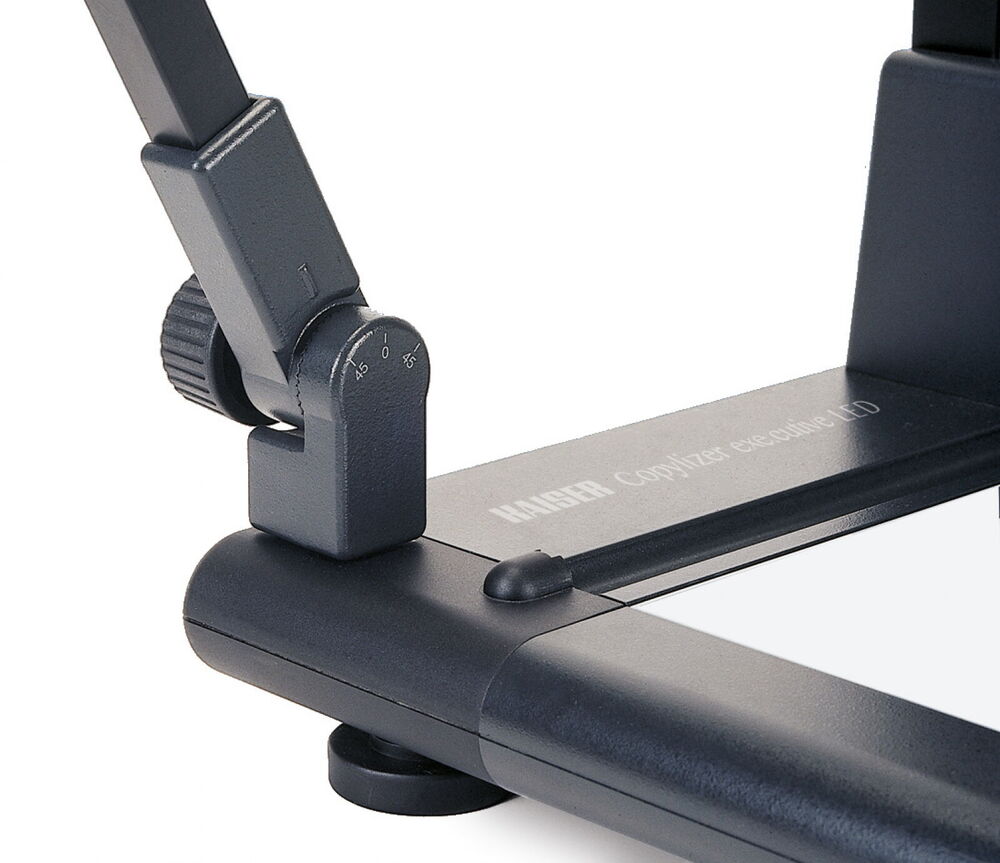

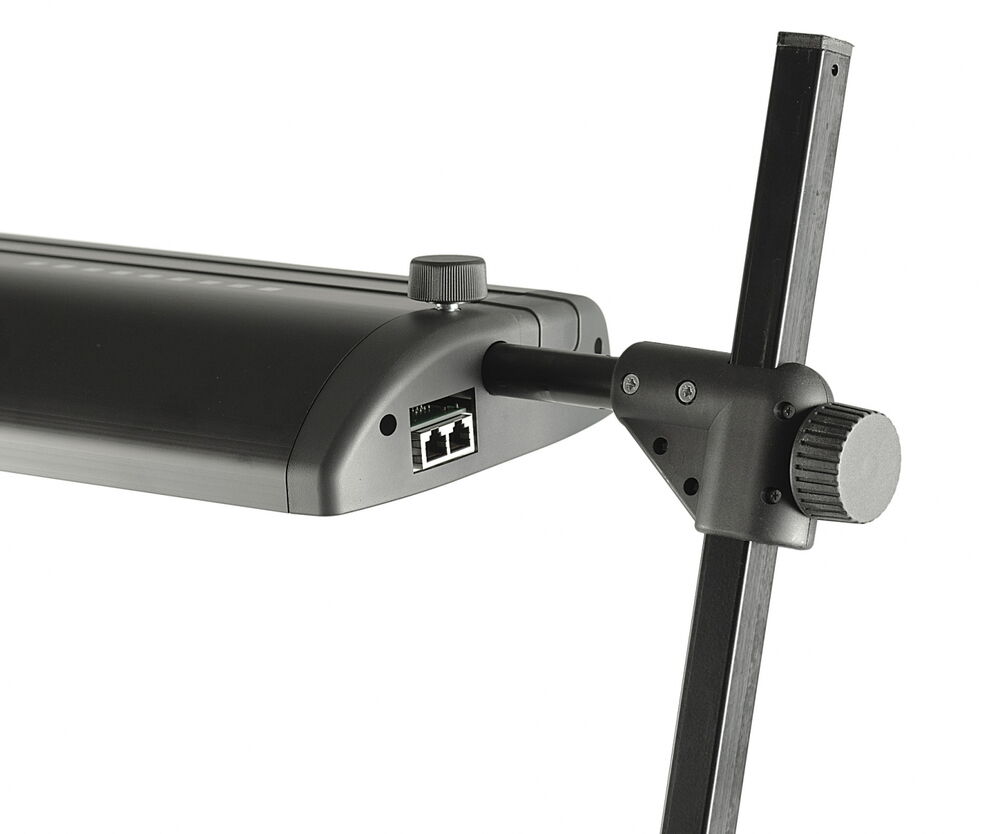

Lamp housings made of sturdy anodized aluminum section, can be swiveled, shifted and adjusted in height. Detachable soft screens. Vertical arms with height markings, tiltable with detents. Mounted with strong articulated joint bases. Comes with mains adapter.



Specifications:

Lights
LED arrays: 2 x 192 SMD LEDs
Color temperature: 5600 K
Color rendition index: CRI = 95
LED angle of radiation: 100°
Max. illumination* with soft screen: 4600 lux
                             w/o soft screen: 5200 lux
* based on uniform illumination of a 16.5 x 11.5 in. flat subject

Power consumption: 2 x ≤ 28 W
Operating voltage: 24 V
Light emitting area of one light: 39 x 16.5 cm (15.4 x 6.5 in.)
Vertical arms: 76 cm (29.9 in.) length / 20 x 20 mm (0.8 x 0.8 in.) edge dimension

Mains adapter
Input: 100-240 V, 50/60 Hz
Output: 24 V, 3 A
Mains lead: approx. 2.50 m (8.2 ft.)
