RB 5970 UV Lighting Unit

Code no: 5596

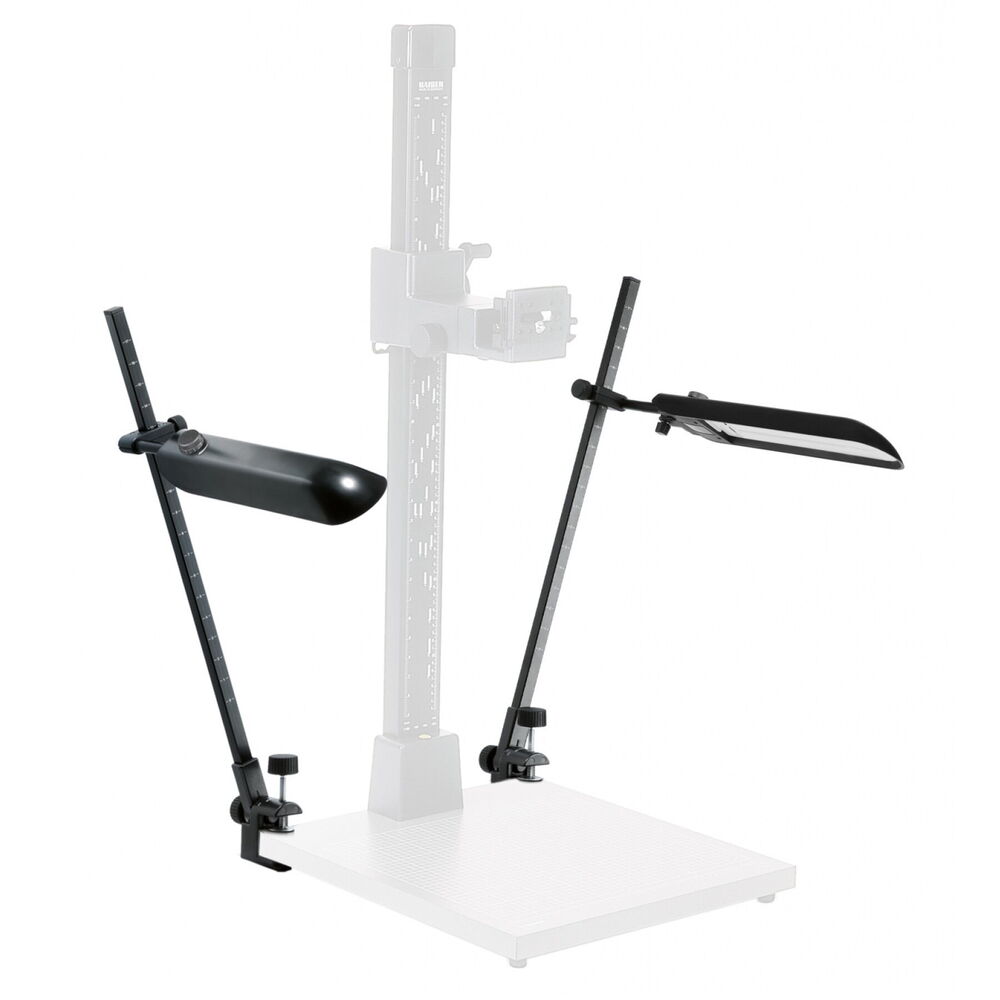

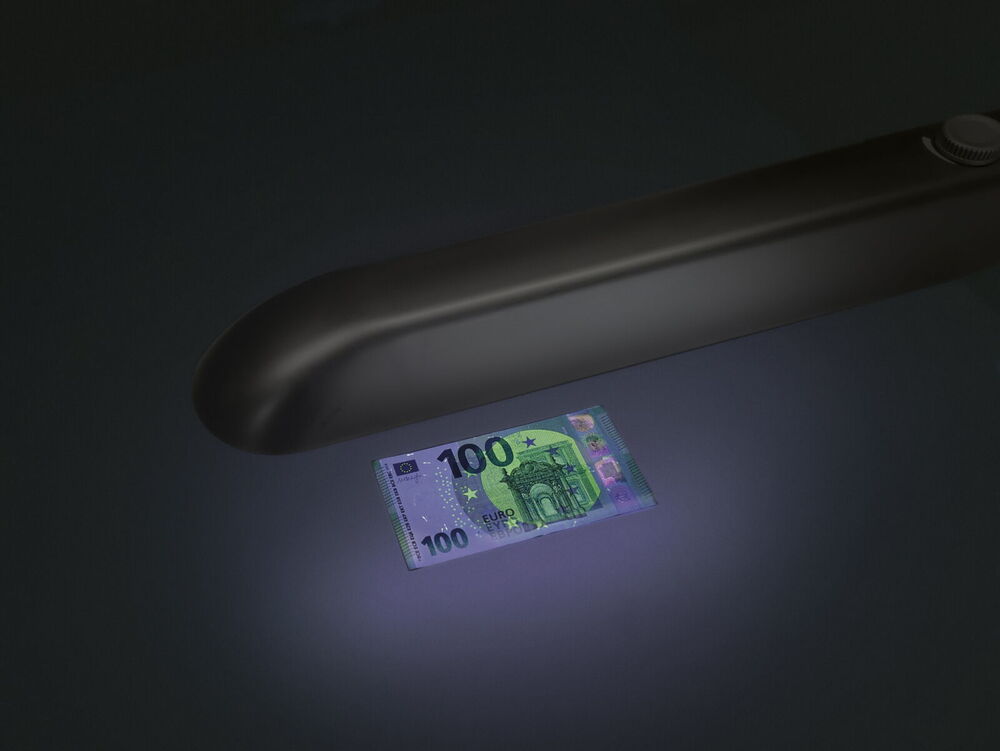

UV lighting unit with two light banks, each one fitted with 12 UV-A LEDs for applications in UV and fluorescence photography.

Each light separately dimmable.

With constant current driver for flicker-free operation.

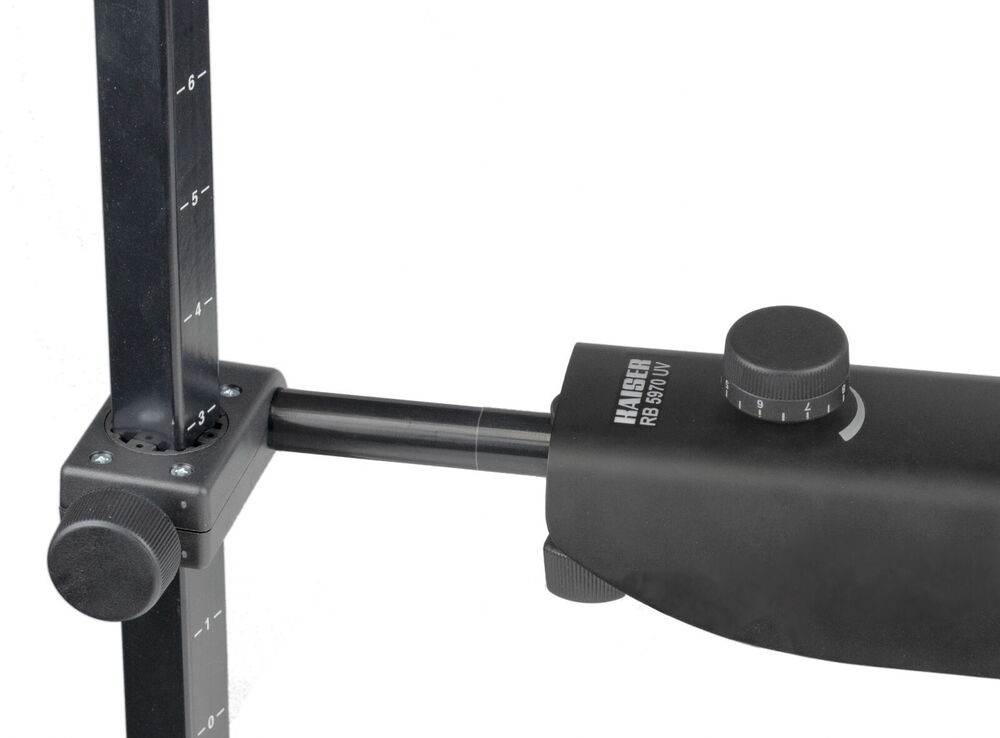

Lights can be tilted, swiveled and adjusted in height. Vertical lamp arms with height markings, tiltable with detents. Mounted with strong cast clamp bases, clamp width up to 48 mm (1.9 in.).



Light source:                    2 x 12 UV-A LEDs (SMD)
Radiation:                        365 nm (UV-A)
LED angle of radiation:    100°
Power consumption:        2 x 9 W
Operating voltage:           AC 220 – 240 V, 50/60 Hz or
                                        AC 120 V, 60 Hz (see type plate)
Mains lead:                      2 x approx. 1.70 m (5.6 ft.)
